PPE/GF20 Black
Modified Polyphenyleneether
PPE/GF20 Black
(Glass fiber 20% reinforced)
- Heat Resistance
- 146℃
- Tensile Strength
- 93MPa
- Chemical Resistance
- Excellent acid and alkali resistance
- Price
- ★★
Characteristics
- Excellent mechanical strength, stable in a wide temperaturerange, and dimensional stability
- Excellent electrical characteristics.
- Excellent resistance of acid and alkali.
- Strong against hydrolysis and hot water resistances

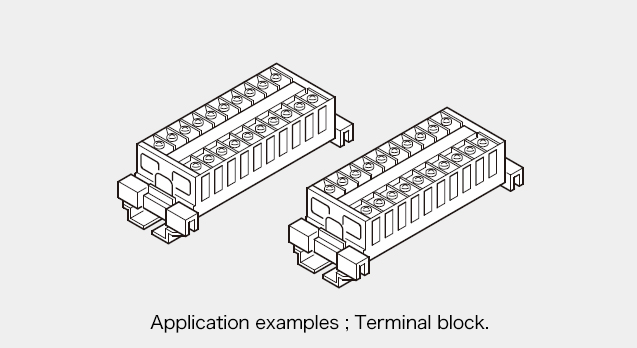

Applications
- Medical instruments and food equipments, housings of office appliances, connecters of automotive electric parts, door handles, exterior parts of automotive.
Attention
- Pay attenttion to cruck during processing.
- Be careful when using on parts that require airtightness
- No resistance to organic solvents (especially cutting oil)
Properties
| ITEM | UNIT | ASTM Method | PC・PC Black | PPE/GF20 |
|---|---|---|---|---|
| Specific gravity | - | D792 | 1.2 | 1.35 |
| Water absorption immersion 24h | ％ | D570 | 0.24 | 0.11 |
| Tensile strength | MPa | D638 | 62 | 93 |
| Tensile elongation | ％ | D638 | 115 | 4 |
| Flexural strength | MPa | D790 | 85 | 157 |
| Flexural modulus | MPa | D790 | 2,300 | 5,400 |
| Izod impact strength | J/m | D256 | 870 | 111 |
| Rockwell hardness | - | D785 | M65 | M98 |
| Heat deflection temperature 1.82MPa | ℃ | D648 | 136 | 146 |
| Flammability | - | （UL94） | 丸棒HB/0.38*、板V-2/0.44 | HB/0.4、V-2/0.75、V-0/1.5 |
| Coefficient of linear thermal expansion | xE-5/℃ | D696 | 6.5 | 2.4 |
| Crystal melting temperature | ℃ | - | ー | ー |
| Glass transition temperature | ℃ | - | 150 | 150 |
| Volume resistivity | Ω・cm | D257 | 2 x E16 | ー |
| Dielectric constant 1MHz | - | D150 | 2.5 | 2.7 |
| Dielectric loss tangent 1MHz | - | D150 | 0.0082 | 0.0074 |
| Dielectric strength | MV/m | D149 | 20 | 23 |
Product Size Table
Notes
The application examples described are for reference only,the use is not guaranteed.
Please refer to the SDS for handling (transport, storage, molding, disposal).
Espechially please confirm the suitability and safety for food use, medical use, safety equipment, toys, etc.
Our products may correspond export trade control items,please check the relevant laws and regulations.
