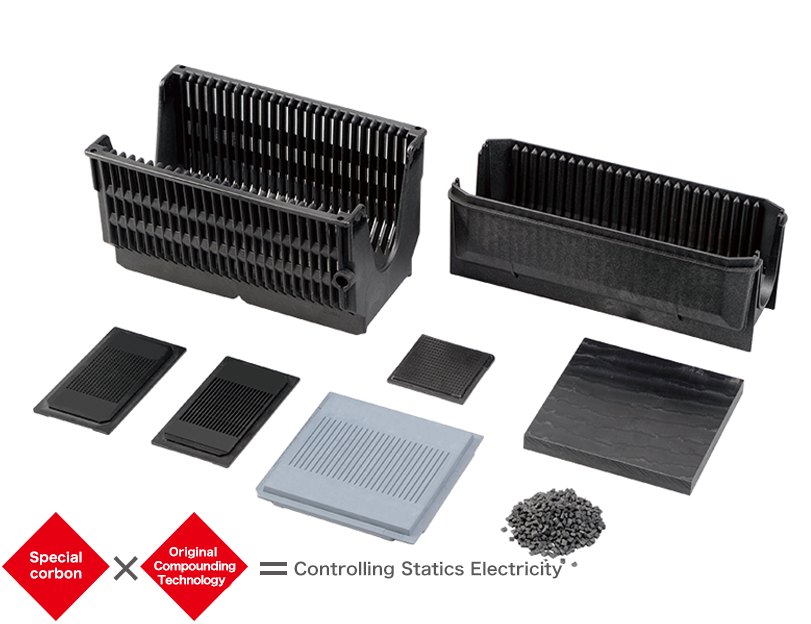

ESD Control Materials

Characteristics

① Static electricity control

Strictly controlled surface resistance by ±10¹Ω in the range of 10⁵-10¹¹Ω
Less variability of surface resistance

② Cleanness

Low outgassing
Low metal pollution
Low particles

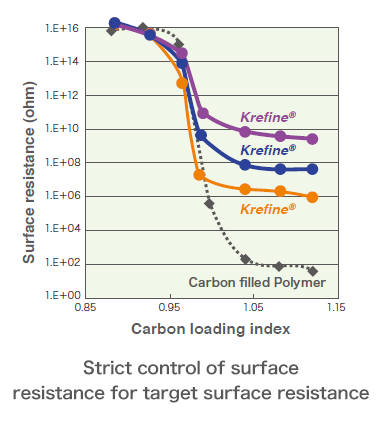

Surface resistance control technology

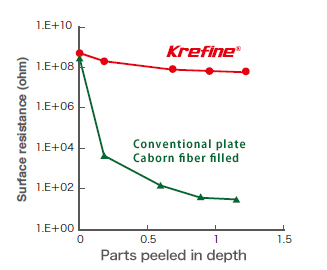

Surface resistance contorl technology in depth

It is difficult to control the surface resistance of molding parts in depth when using carbon fiber filled compound. However, it is easy to control it when using Krefine.

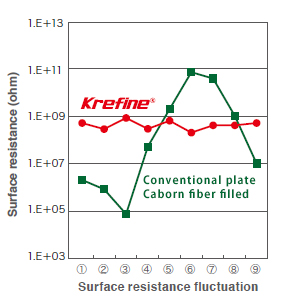

High lebel of uniformity

Kurefine® sheets show very stable surface resistance. When measuring the surface resistance of conventional ESD controlled sheet at the specified 9 points , it's resistance fluctuate greatly , whereas Kurefine® stays within a very narrow range of surface resistance.(In the case of using 2-pin probe surface resistance measuring instrument (diameter 6mm))
